    My personal disclosure: I buy almost exclusively from Trenton_net. His prices are amazing bar none however they have occasionally come with bad ribbons and bad power wires so be prepared to do some soldering and ribbon sourcing. As far as I can recall all chips I've received have worked albeit some are pickier than others with Sanyo Saturns.

    Probably be easier to know what you've tested but I know I have the SSIC7A and HK-3; possibly more but I don't have the parcel with the batch I just purchased on hand either. I'll probably end up reverse engineering a chip for kicks assuming this semester of digital logic proves useful.

    APE, Sep 9, 2012
    #61
  2. Jord9622

    Jord9622 Site Supporter 2014 Site Benefactor

    Joined:
    Apr 23, 2012
    Messages:
    293
    Likes Received:
    7
    Location:
    USA
    Jord9622, Sep 9, 2012
    #62
  3. Trenton_net

    Trenton_net AKA SUPERCOM32

    Joined:
    Apr 13, 2007
    Messages:
    2,255
    Likes Received:
    22
    Location:
    Canada
    This is what I figured personally. Why spend money on a new laser assembly when you might as well just get the real console and everything that comes with it? Especially, as you correctly pointed out, when there are so many revisions? Anyway, these are the kinds of things I am talking about:

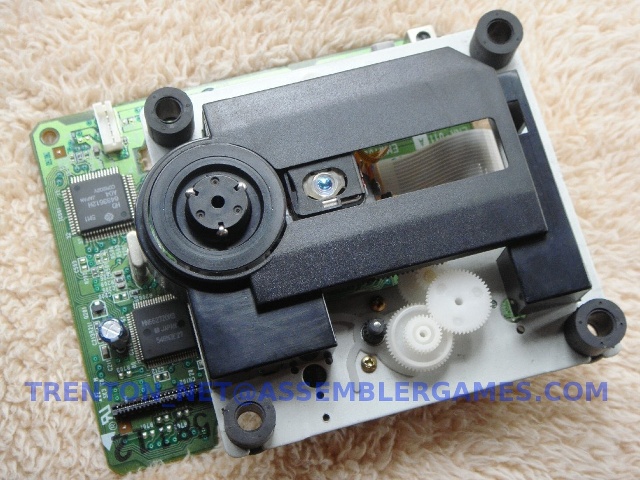

    Full Assembly:
    [​IMG]

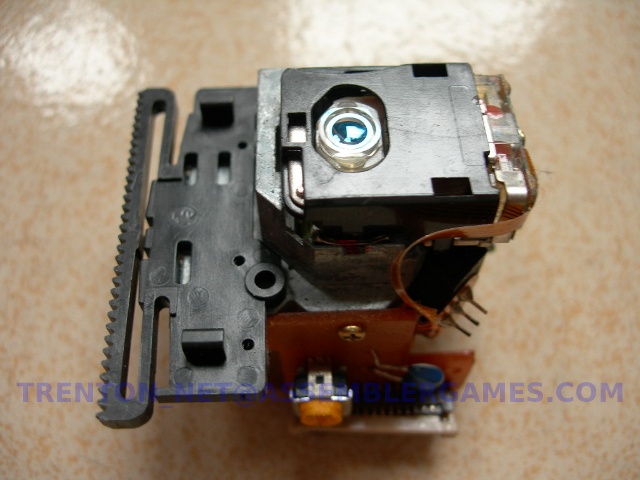

    Just the Lenses (About 50% cheaper than the full assembly):
    [​IMG]

    Being an electronics layman, I don't really know much about these things or what models they would be compatible with. I figure no matter how cheap I could get these in for, shipping from China would kill it for most people. For the weight, size, shipping, original cost, technical knowledge needed to install, I figure people would rather just get another used Saturn and be done with it.

    Trenton_net, Sep 10, 2012
    #63
  4. Bad_Ad84

    Bad_Ad84 Keyboard Error: Press F1 to Continue

    Joined:
    May 26, 2011
    Messages:
    7,087
    Likes Received:
    280
    Location:
    United Kingdom
    I could probably do with a few too, how about you work out a price and then see if people are interested or not - as thats going to be the deciding factor.

    Bad_Ad84, Sep 10, 2012
    #64
  5. retro

    retro Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    10,333
    Likes Received:
    311
    Location:
    UK
    He's right - they're not cheap. I was going to grab some ages ago. Plus the Chinese ones can be very hit and miss - I've seen a LOT of replacement lasers die a lot quicker than the originals.

    The main problem with lasers is that if they're not correctly calibrated, they need special equipment (including the original alignment CD) to set up correctly. Blindly twiddling pots is a sure way to kill the diode fast.

    retro, Sep 10, 2012
    #65
  6. APE

    APE Site Supporter 2015

    Joined:
    Dec 5, 2005
    Messages:
    6,310
    Likes Received:
    69
    Location:
    Caleefornya
    Indeed it is but where in the hell would I find the alignment CD?

    APE, Sep 12, 2012
    #66
  7. Superrayman3

    Superrayman3 Robust Member

    Joined:
    Sep 24, 2011
    Messages:
    294
    Likes Received:
    3
    How do you go about getting one off the catalog?

    Superrayman3, Sep 27, 2012
    #67
  8. Bad_Ad84

    Bad_Ad84 Keyboard Error: Press F1 to Continue

    Joined:
    May 26, 2011
    Messages:
    7,087
    Likes Received:
    280
    Location:
    United Kingdom
    email him

    Also, he now has the 20/21 pin chips

    Bad_Ad84, Sep 28, 2012
    #68
  9. Superrayman3

    Superrayman3 Robust Member

    Joined:
    Sep 24, 2011
    Messages:
    294
    Likes Received:
    3
    Okay how much are they and how would I pay for it? would I just send him a PP payment as a gift or how does it work?

    Last edited: Sep 28, 2012
    Superrayman3, Sep 28, 2012
    #69
  10. Druid II

    Druid II Officer at Arms

    Joined:
    Jun 6, 2006
    Messages:
    3,600
    Likes Received:
    101
    Last time I asked him about it, he said 16Ł will be the final price, but you should ask him directly.

    Druid II, Sep 28, 2012
    #70
  11. Superrayman3

    Superrayman3 Robust Member

    Joined:
    Sep 24, 2011
    Messages:
    294
    Likes Received:
    3
    Ok I'll ask him in the next few days now I just need to figure out how to pay for it.

    Superrayman3, Sep 28, 2012
    #71
  12. fasman

    fasman Enthusiastic Member

    Joined:
    Mar 10, 2011
    Messages:
    520
    Likes Received:
    1
    Location:
    South Africa
    Dropped Trenton a PM would love to get some of those, as it will probably work out cheaper than shipping yet another console from the US/UK only to find the laser died in the post :/

    Last edited: Oct 4, 2012
    fasman, Oct 4, 2012
    #72
